使用SQL Server中处理JSON数据

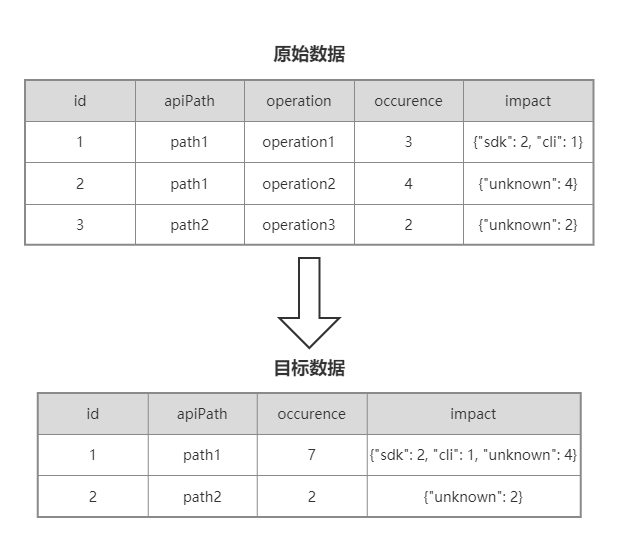

  这次的任务是需要计算Azure中每个API访问的数量以及访问的方式,为了避免数据库数据冗余,所以就将source这个字段在kusto的查询中处理成了一个JSON.然后在存入到了数据库中.具体需求如下图

1.具体代码

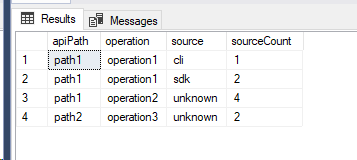

• 我们首先纵向展开上图的原始数据,可以得到下图的数据

  1 2 3 4 5 6 7 8 9 10 11

  SELECT t1.apiPath, t1.operation, t1.[source], t1.[sourceCount] FROM ( SELECT apiPath, operation, impact.[key] as source, SUM(CAST(ISNULL(impact.[value], 0) AS BIGINT)) AS sourceCount FROM @tempTable1 CROSS APPLY OPENJSON(impact) as impact GROUP BY apiPath, operation, impact.[key] ) AS t1



• 然后合并成数据生成目标数据

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

  with tempTable as ( SELECT t1.apiPath, t1.[source], t1.[sourceCount] FROM ( SELECT apiPath, impact.[key] as source, SUM(CAST(ISNULL(impact.[value], 0) AS BIGINT)) AS sourceCount FROM gengxintest CROSS APPLY OPENJSON(impact) as impact GROUP BY apiPath, operation, impact.[key] ) AS t1 ) SELECT a.apiPath, SUM(a.[sourceCount]) as occurrence, '{' + STUFF( ( SELECT DISTINCT ',' + '"' + source + '"' + ':' + CAST(sourceCount AS nvarchar) FROM tempTable WHERE apiPath = a.apiPath FOR XML PATH ('') ) , 1, 1, '') + '}' AS impact FROM tempTable AS a GROUP BY apiPath

2.遇到的问题

1. 纵向展开原始数据导致数据丢失问题 因为impact这列是后续加入的列,所以导致历史数据这列都是NULL,那么在执行这个SQL纵向展开原始数据过程中,会把impact为NULL的数据都丢失,解决办法是 CROSS APPLY 换成OUTER APPLY

2. 性能问题 由于在合并目标数据的时候使用了字符串拼接,导致执行速度很慢,所以最终是没有采用字符串拼接的方式.最终代码如下,最终数据和目标数据有点差异,但并不影响最终使用

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

with tempTable as (
SELECT
			t1.apiPath,
			t1.[source],
			t1.[sourceCount]
		FROM (
      SELECT apiPath, impact.[key] as source, SUM(CAST(ISNULL(impact.[value], 0) AS BIGINT)) AS sourceCount
      FROM gengxintest
      CROSS APPLY OPENJSON(impact) as impact
      GROUP BY apiPath, operation, impact.[key]
    ) AS t1
)
SELECT a.apiPath, SUM(a.[sourceCount]) as occurrence,
    (
      SELECT source, sourceCount AS [count]
      FROM tempTable
      WHERE apiPath = a.apiPath
      FOR JSON PATH
  ) AS impact
FROM tempTable AS a
GROUP BY apiPath

3.Ref

1.Transact-SQL文档
